How to Save Energy When Operating Chemical Pumps? Practical Guide to Cost Reduction & Efficiency Improvement

June 23, 2026 156 Views

Chemical pumps are major energy consumers in industrial production. Every enterprise prioritizes keeping pumps operating within their high-efficiency zones to cut power consumption to the minimum. This guide introduces practical energy-saving solutions for chemical pumps from three perspectives: model matching, operation parameter adjustment, and maintenance.

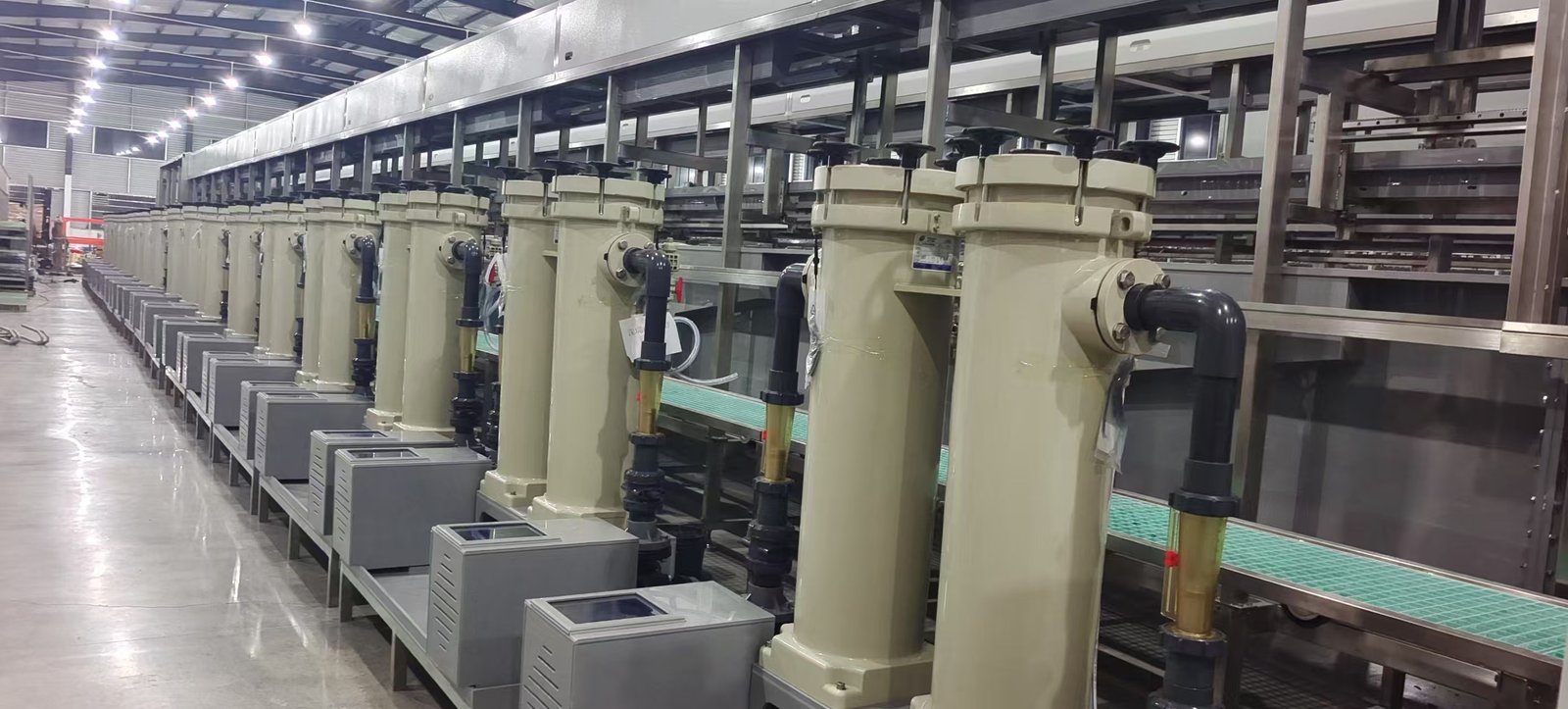

Chemical pump energy saving

1. Proper Model Matching: The Foundation of Energy Saving

The common cause of excessive energy consumption in acid & alkali resistant chemical pumps is "oversized pumps for small loads". When selecting a pump model, accurately calculate the required flow rate and head, and avoid unnecessarily excessive safety margins.

If the pump consistently runs in low-efficiency zones during actual operation (e.g., outlet valve opening less than 60%), trimming the impeller or replacing it with a smaller-sized pump is recommended to shift the operating point into the high-efficiency range.

💡 Tip: Equipping pumps with high-efficiency energy-saving motors (IE3 energy efficiency class or higher) reduces power draw at the source.

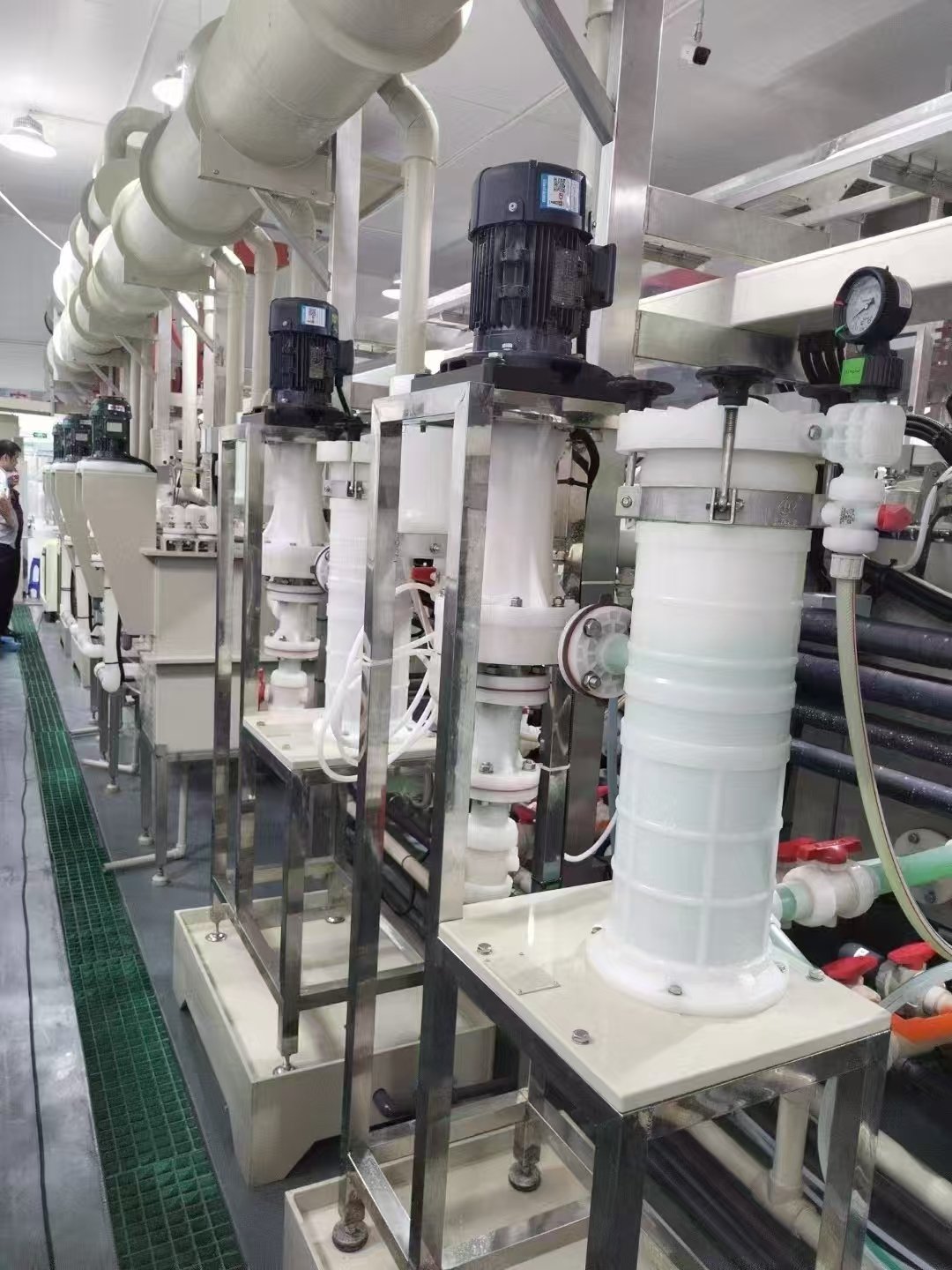

Variable frequency control

2. Rational Adjustment of Operating Parameters

Variable frequency speed regulation should be the primary method for flow adjustment, instead of outlet valve throttling. Valve throttling artificially adds flow resistance, wasting large amounts of energy on the valve itself. In contrast, variable frequency drive matches pump speed to actual process demand, cutting power usage by 20%–40%.

For parallel pump sets, start and stop pumps according to real-time flow demand to prevent multiple pumps from running under low-efficiency conditions. Close the outlet valve promptly after pump shutdown to eliminate energy waste from fluid backflow.

3. Maintenance Directly Impacts Operational Efficiency

Seal failure or abrasion reduces pump efficiency significantly. Conduct regular inspections on mechanical seals and packing seals to eliminate energy loss from fluid leakage.

Corrosion and wear on impellers and pump casings distort flow channel geometry, gradually lowering the efficiency of acid & alkali resistant pumps year over year; damaged components shall be repaired or replaced in a timely manner.

💡 Tip: Keep the pump inlet filter screen clean to avoid increased suction resistance and cavitation. Cavitation not only raises energy consumption but also damages all wetted parts of the pump.

Calibrate pressure gauges and ammeters periodically to monitor shifts in operating parameters.

4. Operation Management Cannot Be Overlooked

Prevent prolonged dry running or ultra-low load operation of pumps. For batch transfer processes, install automatic start-stop controllers to eliminate idle runtime.

When conveying high-temperature media, insulate the pump body and pipelines to minimize heat loss, which indirectly cuts power demand.

Optimize pipeline layout by reducing the number of elbows to lower frictional head loss along the flow path.

Conclusion

Energy saving for chemical pumps is a systematic project. Every stage — model selection, operation, maintenance and management — carries energy-saving potential. Adhering to the principle of "optimal capacity matching, variable frequency first, refined maintenance" can not only reduce electricity expenses, but also extend equipment service life, delivering a win-win outcome for economic benefits and equipment reliability.
