Preface
Many customers tend to confuse two core concepts: Anodizing refers to the general term for aluminum surface treatment processes, while rectifiers are supporting power supply equipment. These two terms cannot be equated. The so-called "conventional oxidation rectifier" is only compatible with standard decorative anodizing. For high-wear-resistance, thick-film hard anodizing, professional dedicated hard anodizing rectifiers are mandatory.
This article conducts a comprehensive breakdown from three perspectives: process definitions, core equipment differences, and precise selection criteria, enabling customers to quickly complete model comparison and selection.

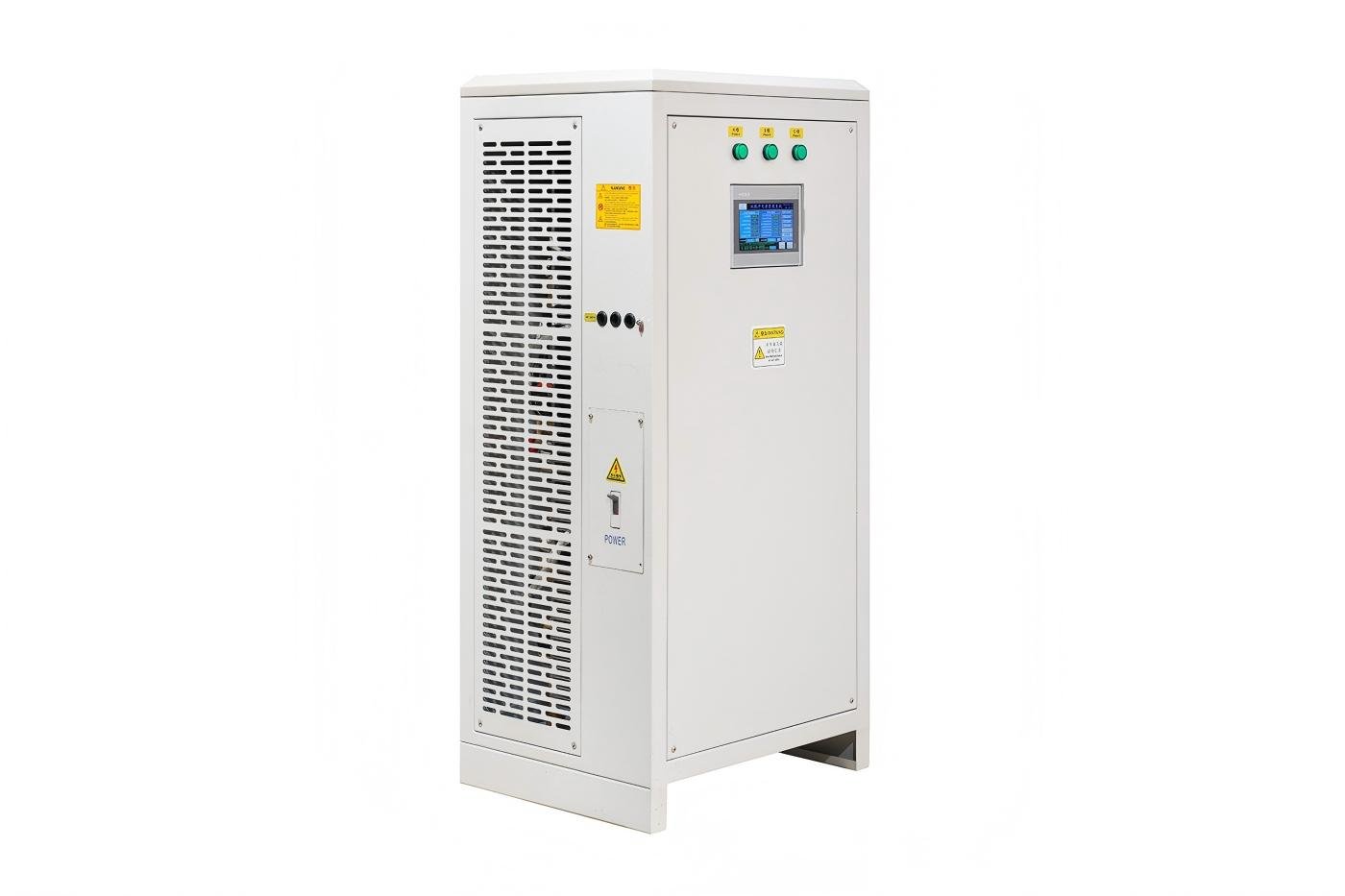

.jpg)
I. Distinction of Process Concepts: Fundamental Requirements of the Two Anodizing Processes Are Entirely Different
Anodizing is a surface treatment process where aluminum materials form a protective aluminum oxide film through electrolysis under electrification. The industry categorizes it into two major types by functional purpose, with vast disparities in process parameters and finished product requirements — these differences directly determine rectifier selection standards:
1 Conventional Decorative Anodizing (Matched with Conventional Oxidation Rectifiers)
- Application Objects: Aluminum door & window profiles, 3C electronic product housings, decorative aluminum parts
- Core Requirements: Uniform surface color, bright and attractive tinting; low standards for film hardness and thickness
- Process Conditions: Ambient-temperature sulfuric acid electrolyte with mild operating conditions; standard operating voltage 12–20 V, current density 1–3 A/dm², thin oxide film and low overall heat load
2 Hard Wear-Resistant Anodizing (Matched with Hard Anodizing Rectifiers)
- Application Objects: Wear-resistant mechanical components, military parts, hydraulic aluminum components, high-load moving aluminum workpieces
- Core Requirements: High-hardness thick oxide film with excellent wear and corrosion resistance; film thickness ranges from 50 to 200 μm
- Process Conditions: Low-temperature electrolyte (0–10 °C) with rigorous process demands; operating voltage 30–60 V, peak voltage approaching 100 V, current density 2–5 A/dm²; heat load during operation is far higher than that of decorative anodizing
Conventional oxidation rectifier = Special power supply for decorative anodizing
Hard anodizing rectifier = Exclusive power supply for wear-resistant thick-film hard anodizing
II. Core Parameter Comparison: Conventional Oxidation Rectifiers vs Hard Anodizing Rectifiers
The design logic of both types of equipment fully matches their corresponding processes. Core gaps fall into six dimensions: voltage range, applicable current density, ripple factor, control logic, load endurance and heat dissipation, and intelligent auxiliary functions. Detailed comparison is shown below:
| Comparison Dimension | Conventional Oxidation Rectifier (For Decorative Anodizing) | Hard Anodizing Rectifier (For Wear-Resistant Thick-Film Anodizing) |
|---|---|---|
| Output Voltage Range | 0–30 V, covers all ambient-temperature decorative anodizing processes | 0–100 V, meets high-voltage thick-film formation demands to prevent film breakdown and production interruption |
| Applicable Current Density | 1–3 A/dm², suitable for mild low-current, low-heat operating conditions | 2–8 A/dm², supports high-current high-density operation for fast formation of thick hard oxide films |
| Standard Ripple Factor | ≤1%; only ensures no obvious color difference on appearance, no strict requirements for film compactness | ≤0.5%; ultra-low ripple eliminates film defects including pits, pinholes, uneven hardness and local breakdown |
| Primary Control Mode | CV (Constant Voltage) Priority; stable tank voltage uniformly controls decorative film thickness | CC (Constant Current) Priority; oxide film continuously thickens with rising film resistance. Constant current stably regulates film hardness and growth rate, with voltage rising automatically as the film thickens |
| Load Endurance & Heat Dissipation | Air cooling as standard, continuous load rate 70%–80%; low heat generation under low-current conditions, air cooling suffices for stable temperature control | Reinforced overall heat dissipation structure design; full-load rate reaches 90%–100%. Adapts to continuous high-current high-heat hard anodizing operations to avoid high-temperature shutdown during long-term non-stop production |
| Auxiliary Intelligent Functions | Only basic overcurrent & overvoltage protection equipped, no support for complex process curve programming | Standard features: step-up/step-down voltage adjustment, soft start, temperature linkage control. Soft start prevents workpiece ablation from instantaneous surge current; step voltage adjustment adapts to rising film resistance; temperature linkage maintains stable low-temperature electrolyte environment |
| Main Application Scenarios | Architectural aluminum profiles, color dyed anodizing, 3C decorative appearance parts | Military accessories, wear-resistant aluminum parts for construction machinery, mass production of high-hardness wear-resistant oxide films |

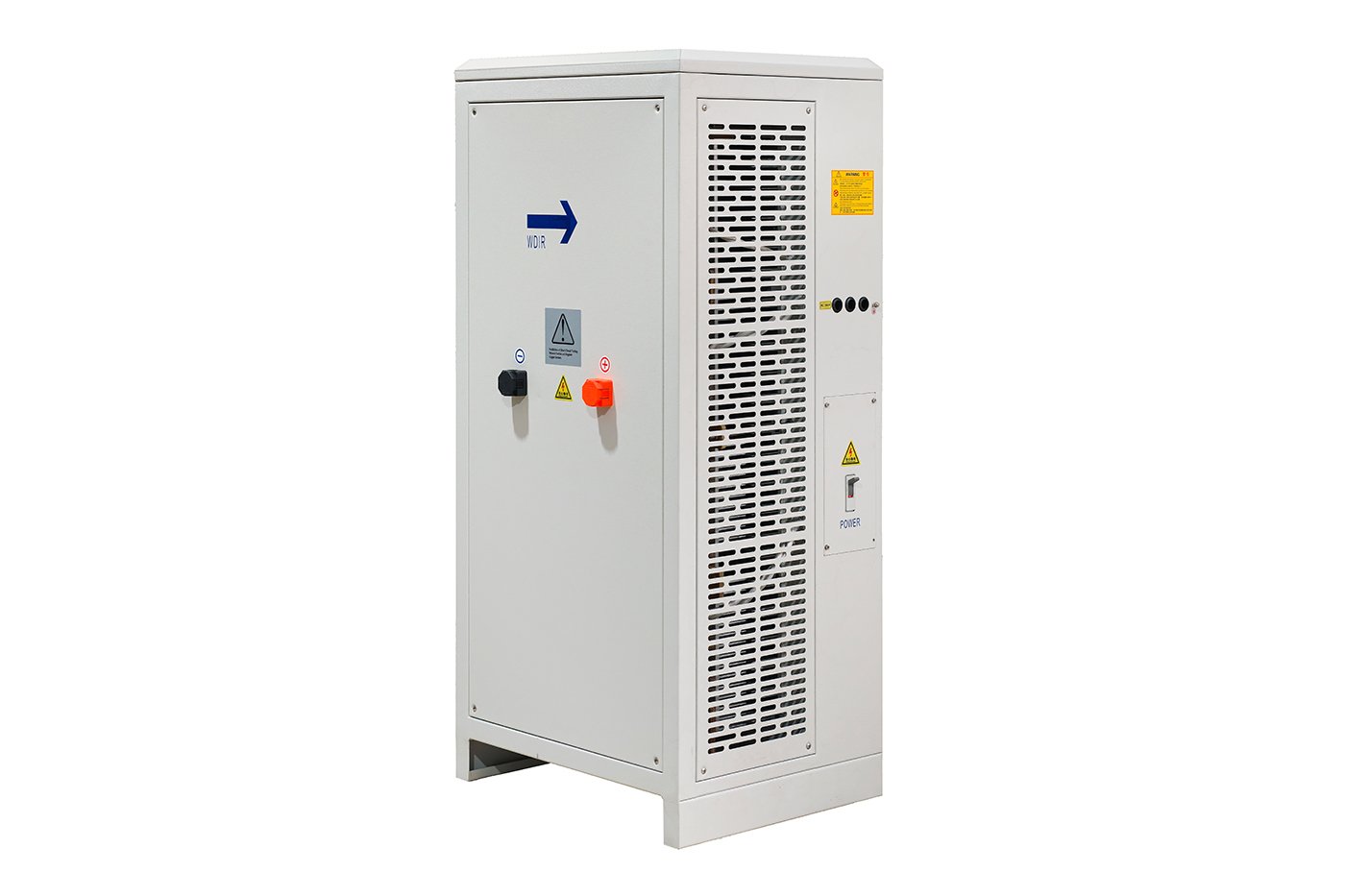

.jpg)
III. Precise Rectifier Selection Criteria (Classified by Anodizing Process)
(1) Conventional Decorative Anodizing: Adopt High-Frequency Conventional Oxidation Rectifiers
High-frequency switching rectifier power supplies are recommended as priority options, featuring 85%–90% overall efficiency, compact size and lower energy consumption. Selection parameter standards are as follows:
- Voltage Specification: Standard 0–30 V model fully covers all ambient-temperature dyeing anodizing processes;
- Current Calculation: Total output current = Total workpiece surface area × Process current density. Reserve an extra 20% current margin during selection to handle full-load mass production;
- Ripple Requirement: Ripple factor ≤1% meets all appearance tinting standards;
- Heat Dissipation Selection: Standard air-cooled models satisfy the demands of most production lines.
(2) Hard Wear-Resistant Anodizing: Dedicated Hard Anodizing Rectifiers Are Mandatory
Conventional oxidation rectifiers cannot withstand the rigorous high-voltage, high-current and low-temperature operating conditions of hard anodizing. The following rigid selection thresholds cannot be compromised:
- Mandatory Voltage Requirement: 0–100 V wide voltage output. High voltage in the later film-forming stage penetrates thickened oxide films to guarantee uniform film thickness;
- Mandatory Load & Heat Dissipation Requirement: Equipment with reinforced heat dissipation scheme supports long-term 90%~100% full-load operation, adapts to sustained high heat output of the process, and avoids frequent high-temperature protective shutdowns;
- Mandatory Control Mode Requirement: Supports constant current priority mode + step-up voltage program. Soft start function is indispensable to eliminate workpiece ablation caused by surge current;
- Mandatory Ripple Requirement: Ripple factor ≤0.5%. Low-ripple current produces compact, pinhole-free wear-resistant oxide films with uniform hardness;
- Expandable Auxiliary Function: Temperature linkage interfaces can be installed to synchronously control chiller units of the anodizing tank, fully automatically stabilizing the low-temperature electrolyte environment.
Practical Summary
The quality of finished anodized products fundamentally depends on the matching degree between rectifier equipment and the production process:
- For decorative appearance finishing, color dyeing and aluminum profile anodizing: Conventional 0–30 V constant-voltage oxidation rectifiers deliver superior cost performance.
- For hard anodizing of high-hardness thick-film wear-resistant military & mechanical components: Dedicated hard anodizing rectifiers with wide voltage range, high full-load endurance, constant-current step voltage control and low ripple are required to eliminate mass workpiece rejection defects from the source.
