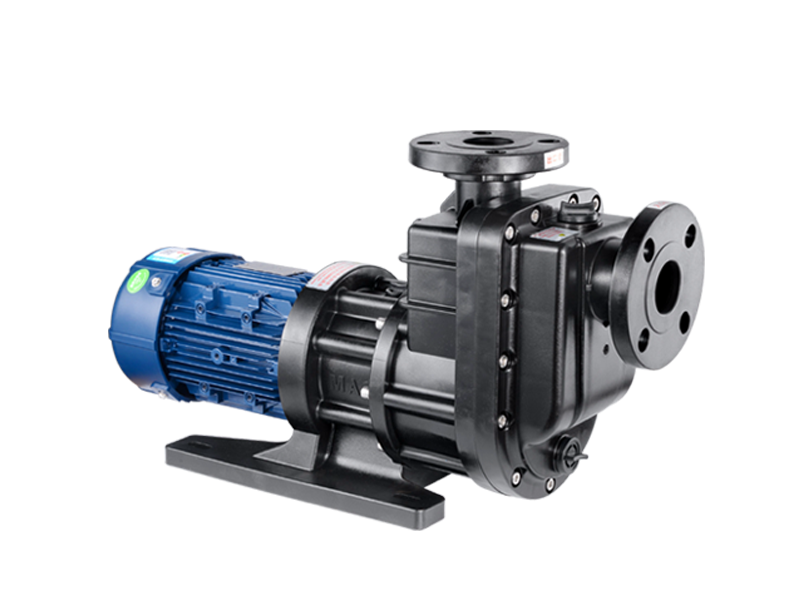

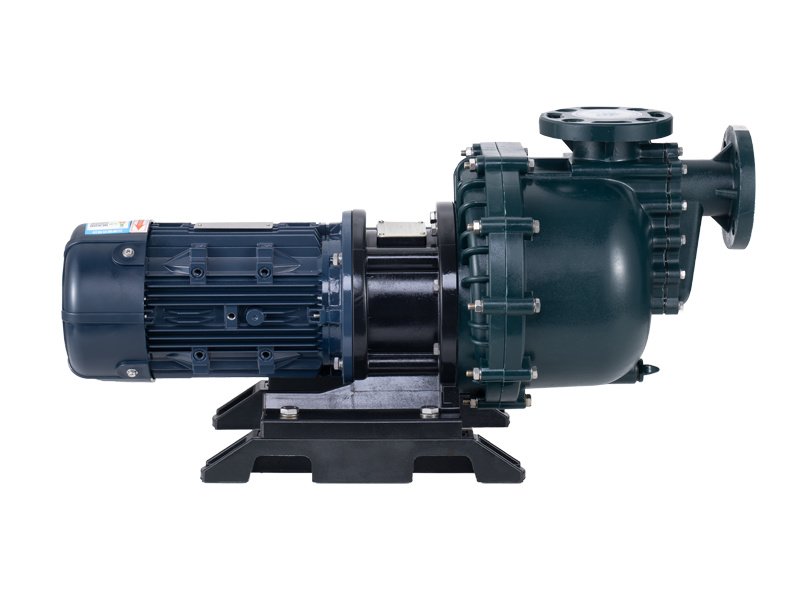

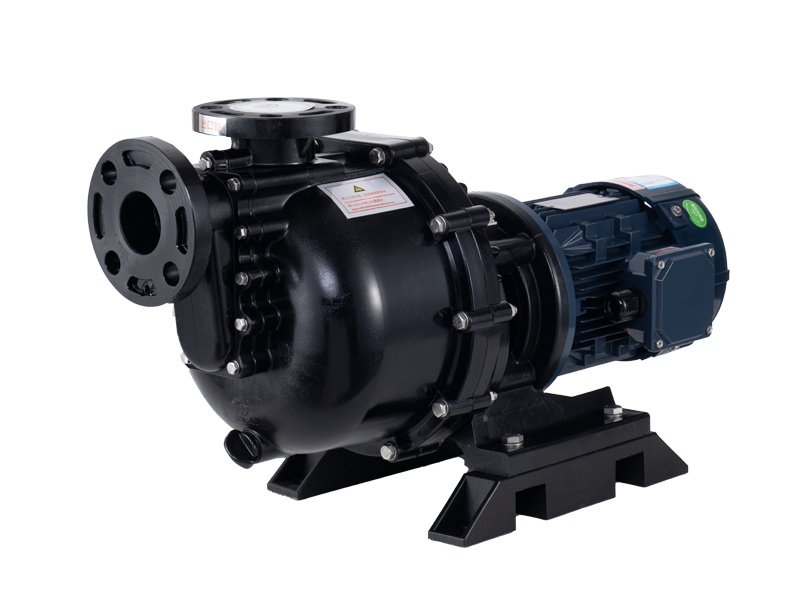

Pump body using FRPP/PVDF, integrated self-priming cylinder and flange, wear-resistant middle cover, high efficiency impeller. Suitable for corrosive fluid transfer in electroplating, chemical, etc.
.jpg)
.jpg)
.png)
Pump body using native FRPP/PVDF (imported). Significantly improved corrosion resistance and structural strength.
Self-absorption cylinder and flange integrally molded with pump body, no welds, no leakage.
Middle cover integrated molding, adopt strong gluten and wear-resistant material, long service life.
High efficiency impeller design, integrated molding, improves pump efficiency and extends lifespan.
Shaft seal material can be selected according to working environment, adaptable to various media.
| Model | Inlet/Outlet (mm) | Power (kW) | 50Hz | 60Hz | ||
|---|---|---|---|---|---|---|
| Head (m) | Capacity (L/min) | Head (m) | Capacity (L/min) | |||
| JKB-40012 | 40/40 | 0.75 | 12.8 | 244 | 16 | 240 |
| JKB-40022 | 40/40 | 1.5 | 15 | 350 | 18 | 320 |
| JKB-50032 | 50/50 | 2.2 | 20 | 400 | 22 | 340 |
| JKB-50052 | 50/50 | 4 | 23 | 510 | 25 | 480 |
| JKB-75052 | 75/75 | 4 | 22 | 750 | 23 | 660 |
| JKB-75072 | 75/75 | 5.5 | 25 | 900 | 27 | 880 |
| JKB-75102 | 75/75 | 7.5 | 28 | 960 | 30 | 940 |
JKB series designed for reliable fluid transfer in harsh environments
FRPP/PVDF body, resistant to acids, alkalis, and salts.
Integrated self-priming cylinder, no leakage, fast priming.
Middle cover with strong gluten, extended service life.
Optimized impeller, low energy consumption, high flow.
Multiple seal and O-ring options for different media.
