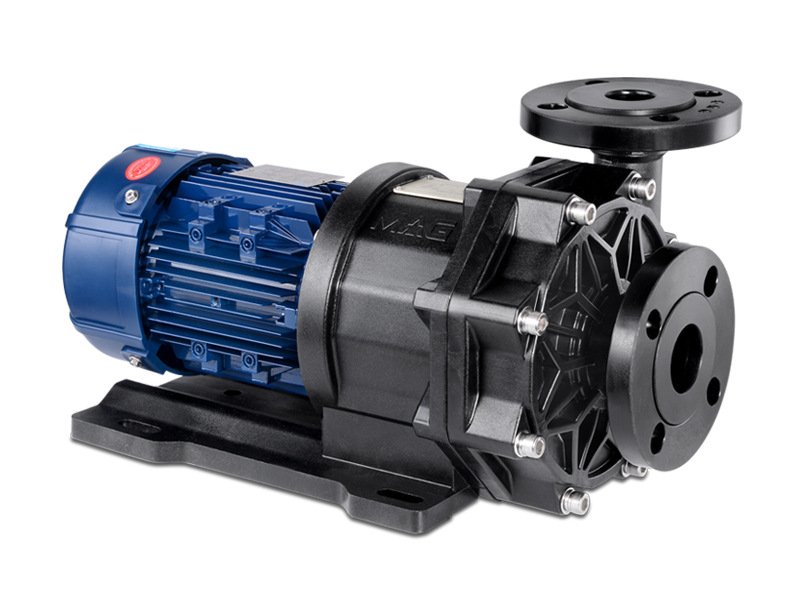

High-quality CFRPP/PVDF/ETFE raw materials, high-precision ceramic & silicon carbide bearings, corrosion-resistant, wear-resistant, and heat shock resistant. Super large flow up to 1100 L/min. Ideal for etching, electroplating, electrophoresis, wastewater lifting, and spraying.
.jpg)
.jpg)
.jpg)
CFRPP/PVDF/ETFE raw materials for excellent chemical resistance and durability.
Ceramic & silicon carbide bearings and shaft cores for long life and stability.
Corrosion-resistant, wear-resistant, and thermal shock resistant.
Flow up to 1100 L/min, suitable for large-scale fluid transfer.
Ideal for electroplating, electrophoresis, wastewater, etching, and spraying.
| Model | Inlet (mm) | Outlet (mm) | 50Hz Max Head (m) | 50Hz Max Flow (L/min) | Power (kW) |
|---|---|---|---|---|---|
| MG-250 | 25 | 25 | 16 | 100 | 0.37 |
| MG-251 | 25 | 25 | 22 | 100 | 0.75 |
| MG-440 | 40 | 40 | 11 | 166 | 0.37 |
| MG-441 | 40 | 40 | 14 | 233 | 0.75 |
| MG-542 | 50 | 50 | 18 | 258 | 1.5 |
| MG-543 | 50 | 50 | 22 | 466 | 2.2 |
| MG-545 | 50 | 50 | 27 | 500 | 4 |
| MG-662 | 65 | 65 | 12 | 750 | 1.5 |
| MG-663 | 65 | 65 | 15 | 833 | 2.2 |
| MG-665 | 65 | 65 | 23 | 1133 | 4 |
* Actual flow reference the performance curve diagram attached.
MG series designed for demanding fluid transfer in surface finishing, chemical, and wastewater industries.
PVDF/CFRPP/ETFE handle acids, alkalis, and solvents.
Up to 1133 L/min, ideal for circulation and transfer.
Withstands high temperatures and thermal shock.
Magnetic coupling eliminates shaft seal leakage.
Simple design, easy to service, long service life.
