Electroplating Power Rectifier

High-performance rectifier designed for industrial electroplating applications, adopting advanced energy-saving technology to provide stable and reliable power output.

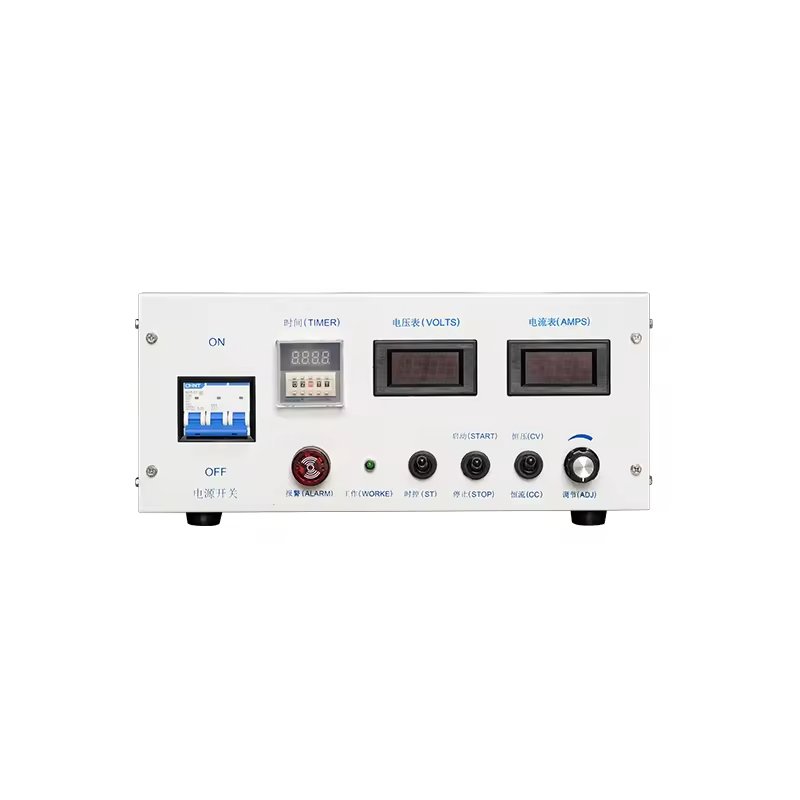

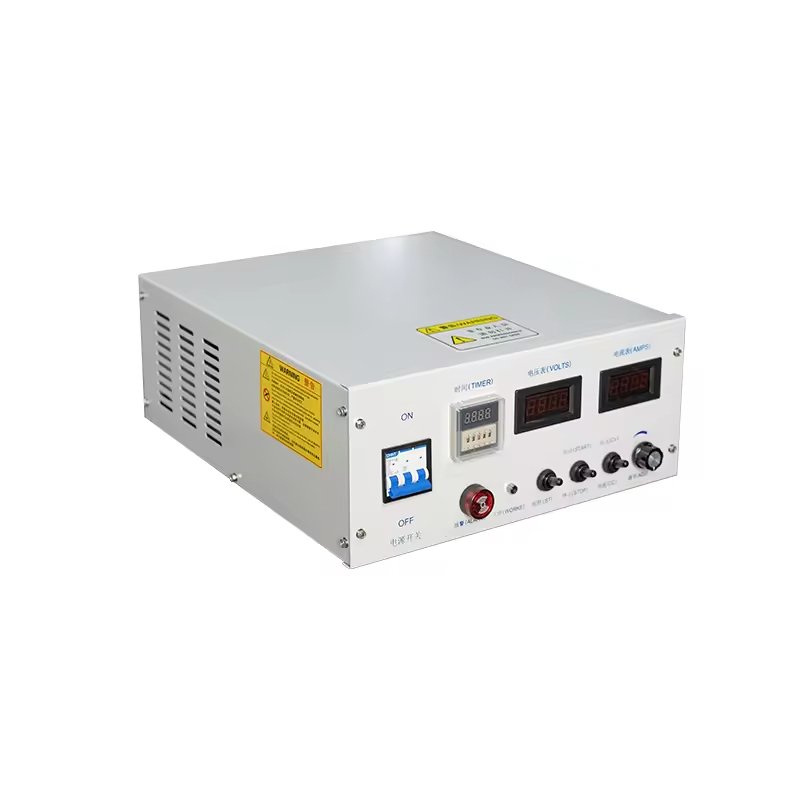

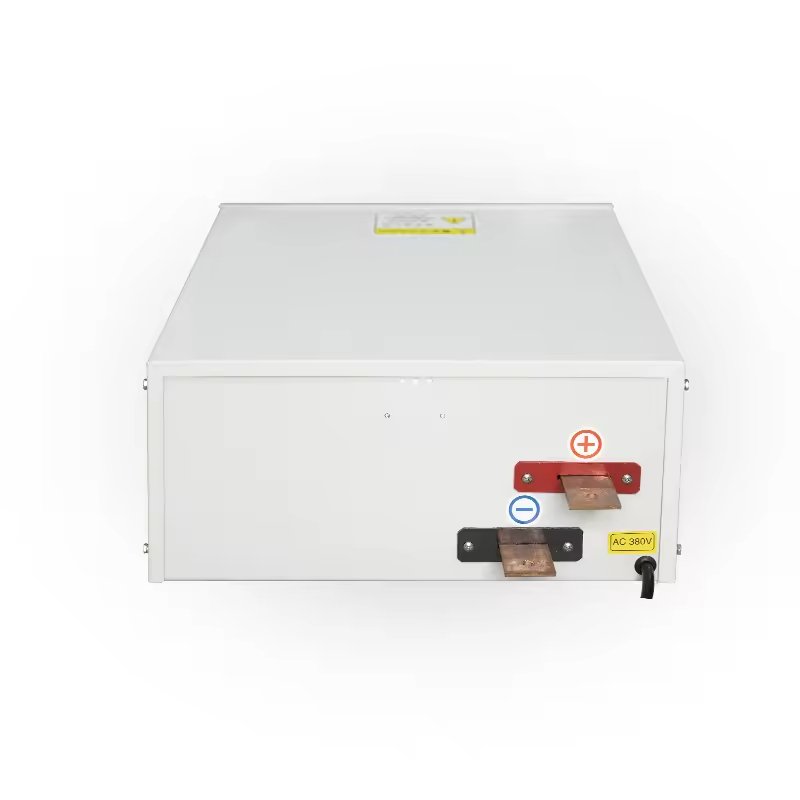

Electroplating Power Rectifier
Internal Structure of Electroplating Power Rectifier
Application Scenario of Electroplating Power Rectifier

Advanced Power Technology

Uses internationally renowned IGBT (Insulated Gate Bipolar Transistor) as the main power device to ensure high efficiency and reliability.

Energy-Saving Design

Overall operating efficiency ≥90%, saving 16%-30% or more energy compared to the previous generation silicon rectifiers.

Corrosion-Resistant Treatment

Structure adopts anti-salt fog acidification treatment, suitable for harsh industrial environments.

Precision Control

The main control system uses multi-loop control technology to provide precise voltage and current regulation for various electroplating processes.

Technical Specifications

Category Parameter Specification
Technical Specifications AC Input AC - 220V/380V/440V±10% 50/60Hz
Output Voltage 0 - 12V (Customizable 0 - 3000V)
Output Current 0 - 500A (Customizable 0 - 50000A)
Constant Current Accuracy ≤1%
Constant Voltage Accuracy ≤1%
Output Waveform 32KHz DC
Performance Features Output Mode Constant Voltage/Constant Current
Display Method Integrated Digital Display
Timing Display Function Yes
Cooling Method Air Cooling
Overall Efficiency ≥90%
Insulation Class Class B
Protection Level IP20
Active Protection Functions
Phase Loss Protection Overcurrent Protection Overheat Protection Short Circuit Protection Undervoltage Protection Overvoltage Protection
Physical Parameters Operating Temperature -15°C - 45°C
Operating Humidity ≤90%
Product Dimensions (CM) 43×50×20.5
Product Weight (KG) 17.9
Customization Options Output Voltage Customizable Range: 0 - 3000V
Output Current Customizable Range: 0 - 50000A
Cooling Method Air Cooling/Water Cooling
Display Method Split Display and Operation Dual-Use Handle
Output Waveform Pure DC with Filter
Other Functions RS485 Communication, Ampere Timer

Core Advantages

Advanced rectifier solutions designed for industrial electroplating

High Efficiency

Overall efficiency ≥90%, 16%-30% more energy-efficient than traditional silicon rectifiers

Precision Control

Constant voltage/current accuracy ≤1%, meeting precise electroplating process requirements

Multiple Protections

Six active protection mechanisms ensure safe and stable operation

Flexible Customization

Supports customized output voltage 0-3000V and current 0-50000A

Quality Commitment

3-year warranty provided (from equipment acceptance date),
covering defects in materials, workmanship, or design
